Semoflex Spezial 4x1 Naftamatika cable is designed to connect EMS121 Load Cell to rod pump controller. Semoflex Spezial 6x1 Naftamatika cable is designed to connect EMS122 load and position sensor to rod pump controller.

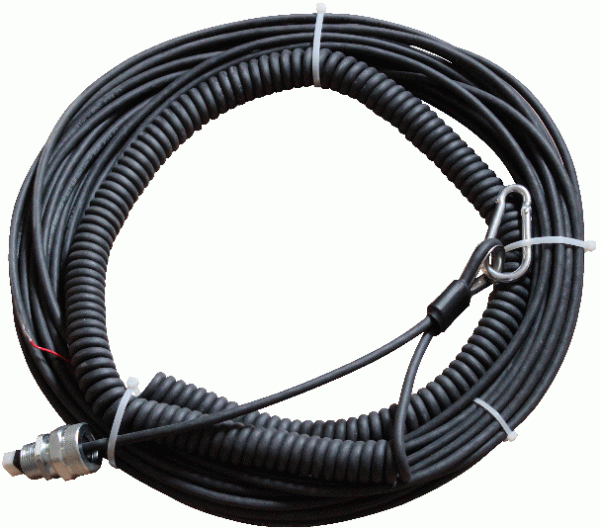

Cable consists ofstraight part, that at a certain place turns into spiral (optional)and then again to the straight one. The cable consists of 4 tinned copper conductors in tinned copper shielding with optical coverage 95%. On the one side of cable is mounted Molex 03-09-1064 connector, on the other side are 4 wires and shielding.
To seal connection to load cell cable gland REMKE RSRS-206 is used.
Cable consists ofstraight part, that at a certain place turns into spiral (optional)and then again to the straight one. The cable consists of 6 tinned copper conductors in tinned copper shielding with optical coverage 95%. On one side of the cable is mounted Amphenol Molex 03-09-1064 connector, on the other side are 6 wires and shielding.
To seal connection to load cell cable gland REMKE RSRS-206 is used.
